sales@vialite.comOutdoor Enclosures: ODE-B3U

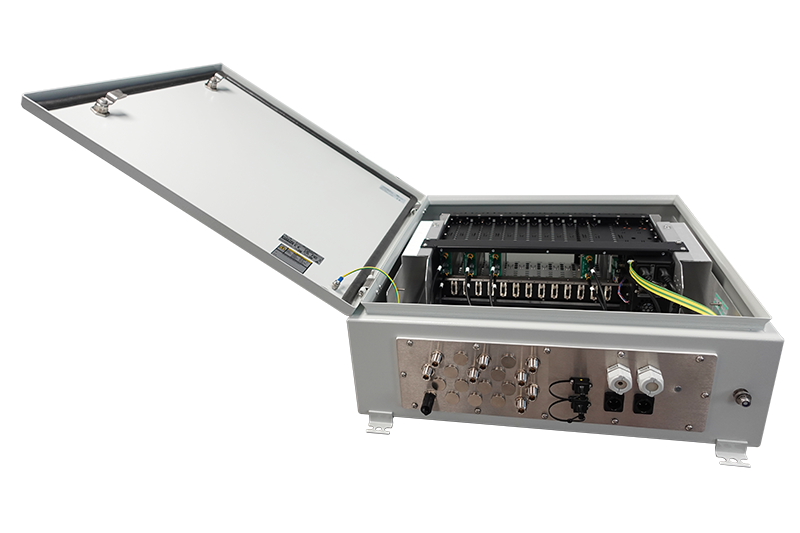

The ViaLiteHD ODE-B3U houses and supports a 3U chassis that can tilt forwards for easy installation and maintenance. Also contained within the ODE-B3U is an integral fiber patch panel and customized gland plate for fiber, RF, power and data connections.
- Houses ViaLiteHD HRK3S 19″ chassis
- Benefit from all HRK3S supported features:
- Dual redundant PSU
- SNMP (HRC-3)
- All ViaLiteHD RF over fiber rack modules
- High module / channel density

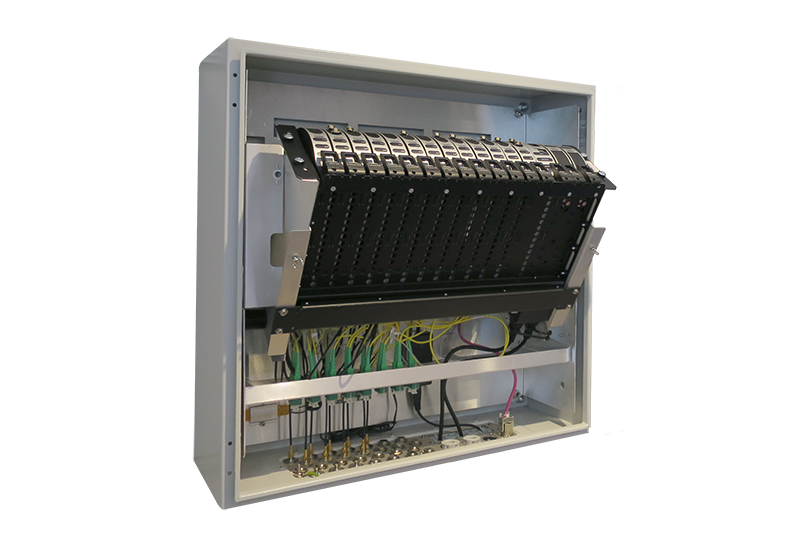

- Simple tilt mechanism for easy access
- Waterproof power, fiber and Ethernet outdoor connectors
- IP66 rated enclosure
- 5-year warranty
You may be interested in viewing our Outdoor Enclosure comparison chart.
Product Inquiry
It is typically installed on a wall, rooftop or antenna hub where RF and other services are transmitted over optical fiber to a remote equipment room.
- Satcom
- Broadcast/satcom
- LEO/MEO
- Mil-Aero
- Government & Defense
- Satcom Telemetry
- Network Timing
- Mining & Public Safety
- Maritime
- Radar
| Parameter | ODE-B3U Enclosure |
|---|---|
| Recommended maximum number of RF channels / modules (1) | 20 |
| IP Rating | IP66 |
| External Dimensions | 600 x 600 x 220 mm |
| Weight (unloaded) | 19 kg (Enclosure & empty rack chassis) |
| Material | Powder coated Stainless Steel |
| Max RF Input / Output Connectors | 20 x N-Type female |
| Max Optical Fiber Connections | 2 x Fibre split gland |
| Max Power Supply Connections | 3 x Power split gland |
| Max RJ45 Connections | 2 x RJ45 |
| PSU Options | Single or dual redundant |
| Supply Voltage Options | 100-240 VAC (2-4 A) |
| Min Operating Ambient Temperature | -20 °C |
| -40 °C (with heater) | |
| Max Operating Ambient Temperature (2) | +60 °C / 4 RF modules |
| +55 °C / 8 RF modules | |
| +50 °C / 12 RF modules | |
| +45 °C / 16 RF modules | |
| Storage Temperature | -40 °C to +70 °C |
| operating Altitude | 2000 m Max |
| Climate Control | Humidity ventilator |
