Rack Chassis

Both the ViaLite 3U and 1U indoor rack chassis come with a 5-year warranty as standard.

3U Rack Chassis

The ViaLiteHD 3U Chassis accommodates up to 13 RF dual cards, supporting as many as 26 links. It also houses a dedicated Monitoring & Control Module and dual power supplies, with a choice of AC or DC power input options. The chassis design uses an integrated backplane for connectivity. All ViaLite modules are hot swappable, avoiding the need to power-down the chassis prior to swapping modules. This can be combined with blind mate connectivity and/or redundancy to ensure almost zero downtime.

Watch the 3U Chassis demo video.

1U Rack Chassis

The ViaLiteHD 1U Chassis is available in two configurations: with three card slots supporting up to six RF channels in a single rack unit, or with two card slots plus a dedicated Monitoring & Control Module. The chassis features dual redundant, hot-swappable blind-mate power supply modules and is available with either AC or DC power input options.

Datasheets

Product Inquiry

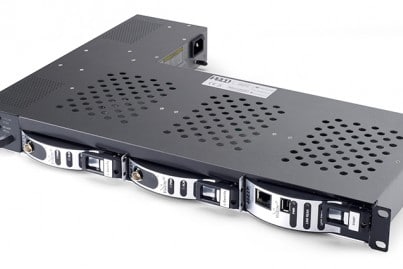

ViaLiteHD 1U rack chassis - populated with chassis cards

Rear views of ViaLite 3U and 1U rack chassis units

ViaLite Horizons SNMP GUI showing a 3U chassis

ViaLite Horizons SNMP GUI showing a 1U chassis

3U Chassis features

Accepts up to 13 RF or Support cards, plus a Monitoring & Control Module and dual power supplies
Up to 26 channels per 3U chassis (using dual RF cards) – reducing the amount of rack space required
Blind mate option
All modules hot-swappable
AC and DC power input options available
On-card LNB and BUC power options
Power fed through rear chassis connector to card Bias Tees
System can be monitored and controlled remotely via SNMP, using a web browser

3U Popular Configuration Example

HRK3S
Unpopulated 3U ViaLiteHD rack chassis with IEC power, rear alarm connectors and AC power source.

HRK3S-DC
Unpopulated 3U ViaLiteHD rack chassis with DC power input, rear alarm connectors and DC power source.

SNMP Monitoring and Control

When a ViaLiteHD chassis is configured with a Monitoring & Control Module, the user can fully monitor and control the cards. Please see the Monitoring and Control Modules product page for more information.

Optional Fan Assembly

As part of the 3U Chassis, a fan assembly option can be chosen, which contains 12 small fans that operate to reduce the temperature of the chassis. As a result, it is possible to use more modules in the chassis.

3U Chassis Fan Option Top View

When the ViaLite 3U rack is used in ODE outdoor enclosures in warm ambient conditions, it is recommended to add the fan assembly.

Outdoor Enclosures

A number of chassis can be stored in ViaLite’s outdoor enclosures.

1U Chassis features

A 1U Chassis accepts up to 3 RF or Support cards or 2 cards and a Monitoring & Control Module (with dual power supplies)
Blind mate option
All modules hot-swappable
AC and DC input options available
On-card LNB and BUC power options
Power fed through rear chassis connector to card Bias Tees
System can be monitored and controlled remotely via SNMP, using a web browser
