Optical Switch

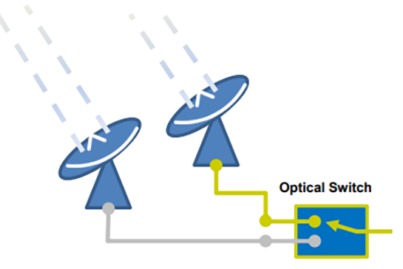

The ViaLiteHD Optical Switch has been designed specifically for fast switching between local and remote locations in Ka-Band satcom diverse antenna applications. This system uses ViaLiteHD Long Distance products.

The 2×2 switch allows the user to switch system configurations between local and diverse sites. It can also feed off-air optical signals into a monitoring receiver when they are not in use. This allows the user to have an alarm status of their off-air channels, improving system confidence and availability. Standard 2×1 switches are also available.

DWDM & CWDM support product

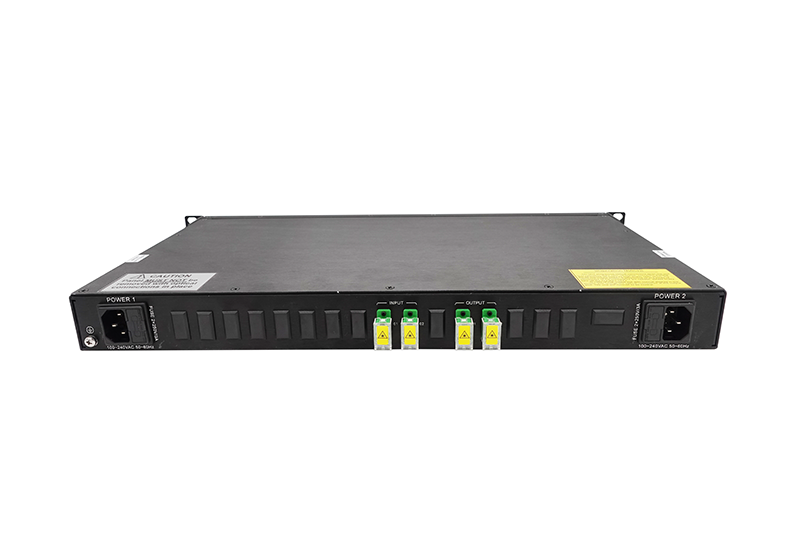

2×1, 2×2 and 4×1 way optical switch
Low insertion loss
SNMP and serial control

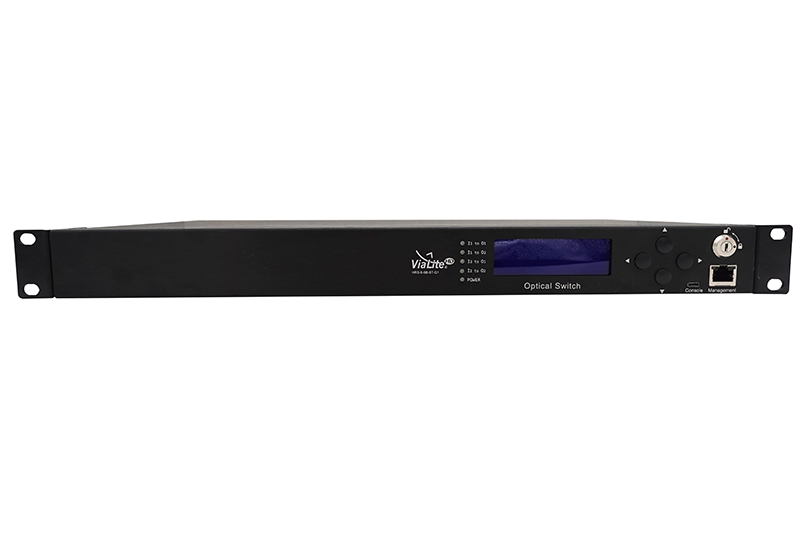

Front panel controls
Fast switching time (20 ms)
Standard 5-year warranty

Datasheets

Product Inquiry

Applications

Ka-Band diversity systems
Fixed satcom earth stations and teleports
Broadcast facilities
VSAT hubs (IP gateways)
Television Receive-Only (TVRO)
GPS / GNSS switching

Performance			Index
			Min.	Typ.	Max.
Optical	Wavelength	(nm)	1260		1620
	Insertion Loss	(dB)	0.5		2
	Return Loss	(dB)	55	60
	Switch Crosstalk	(dB)	55	60
	Polarization Dependent Loss (PDL)	(dB)			0.2
	Switching Time	(ms)			20
	Optical connector			SC/APC
	Optical Input Power Options (P/Q/R)	(dBm)	-20 to 0 / -10 to +10 / 0 to +20
General	SNMP network management interface		10/100M Ethernet (RJ45)
	AC Power Inlet Connector		IEC 60320 C14 (Fused)
	PSU Nominal Input Voltage	(Vac)	100		240
	PSU Input Voltage Range	(Vac	90		264
	PSU Nominal Input Frequency	(Hz)	50		60
	PSU Input Frequency Range	(Hz)	47		63
	Power consumption	(W)			30
	Operating temperature	(°C)	-5		60
	Storage temperature	(°C)	-40		85
	Working relative humidity	(%)	5		95
	Maximum Operating Altitude	(m)			2000
	Height (1U)	(mm)		43.6
	Depth	(mm)			300
	Width – Front Panel	(mm)	482.6		483
	Width – Rear	(mm)			430
